P·P SHEET
Service Reservoirs and
Chemical Storage Facilities
Chemical Storage Facilities







PP Laminated Sheet + Ceramic Coating Waterproofing

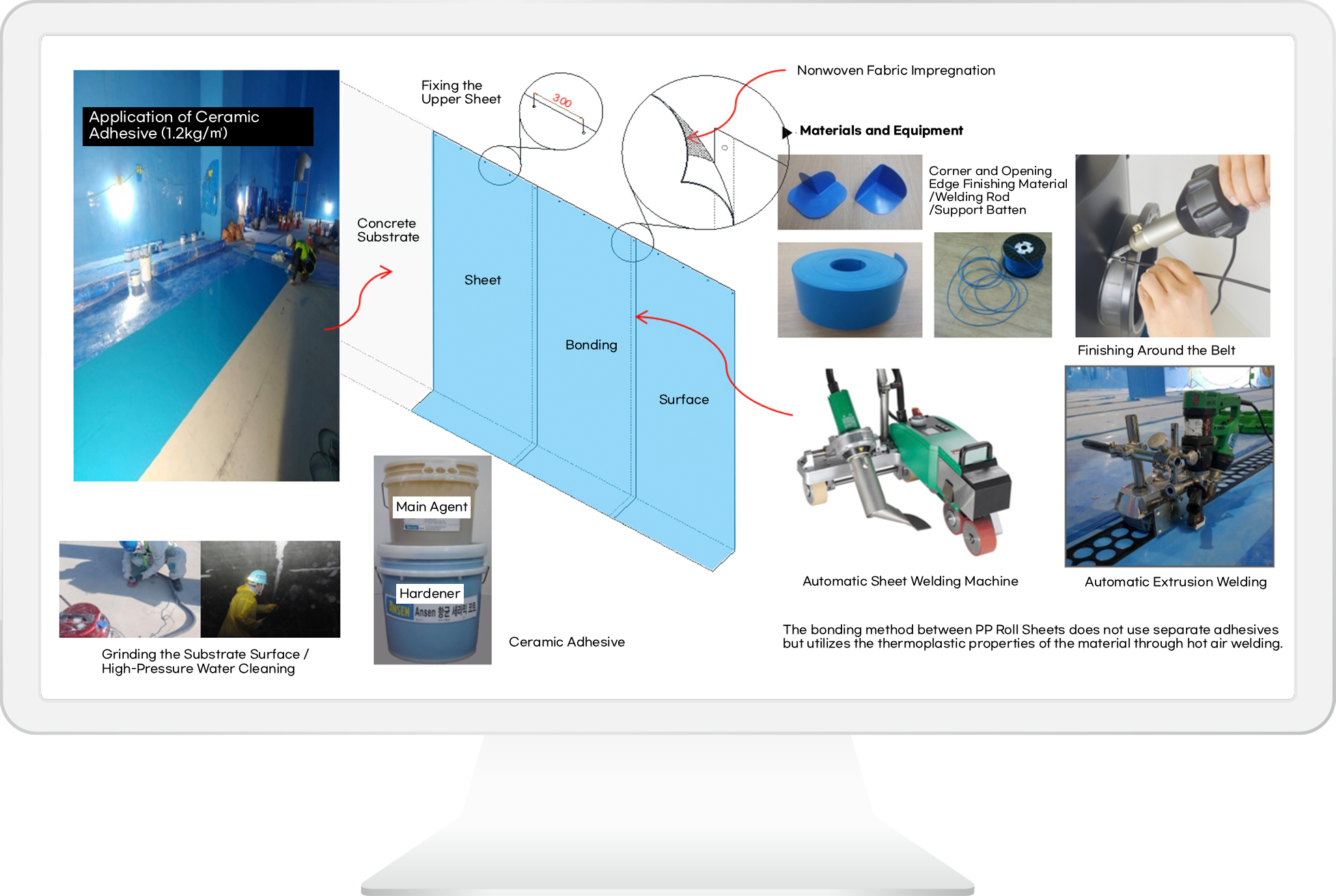

The installation method for PP Laminated Sheet + Ceramic Coating Lining uses sheets impregnated with nonwoven fabric on the reverse side.
These sheets are applied and bonded to the substrate surface using a ceramic adhesive in a wallpapering manner. The seams between sheets are finished using a hot-air welding machine.

On-site Installation Photos


















Comparison of Internal Lining Products for Water Treatment Facilities
Category | PP Roll Sheet | FRP LINING | POLY UREA |
Material | PP SOLID sheet | FIBER GLASS Reinforced | Isocyanate + Polyamine |
Binder | Solid material only, no binder | Unsaturated resin and hardener, curing agents, accelerators (VOCs) | 1:1 mixing ratio spray coating |
Lining Thickness | 2 mm | 3~5 mm | 2 mm |
Corrosion Resistance | Made of {C3H6}n molecular structure, corrosion-free inert material | Made of {CH2-O}n molecular structure unsaturated ester resin; FRP lining corrodes after 5–10 years due to water contact and hydrolysis | Lower corrosion resistance compared to PP |
Corrosion Resistance Image | ![]() | ![]() | ![]() |
Surface Non-stick Property | Made from materials used for food containers; smooth surface, non-toxic, FDA approved | Reacts with water after 3–5 years, causing pinholes; calcium carbonate and grease deposits form | Smooth surface, non-toxic |
Surface Non-stick Image | ![]() | ![]() | ![]() |
Category | PP Roll Sheet | FRP LINING | POLY UREA |
Work ability | Manufactured in a PC factory as a single integrated PP waterproof unit; minimal manpower required for welding; no odor, fumes, or fire hazards during installation | Manufactured and installed in a PC factory using FRP; generates odor, fumes, and dust; uses non-flame-resistant FRP high-priced raw materials | Ultra-fast spray type; extremely quick curing — dries to the touch within 10 seconds, can be used within 1 hour |
Photos | ![]() | ![]() | ![]() |
Absorption | Less than 0.002% absorption, no blistering | High absorption in some areas, blistering occurs | Less than 0.002% absorption, no blistering |
Chemical Resistance | Excellent resistance to strong acids and alkalis, wide temperature tolerance | Weak against acids, alkalis, and organic solvents | Weak against acids and alkalis |
Advantages / Disadvantages | Fully integrated structural adhesion; double welding for water-tight sealing | Prone to defects such as peeling, blistering, discoloration, delamination, pinholes; q uality issues caused by foreign substances; resin leaching; risk of microorganism growth | Weak on damp surfaces |
Photos | ![]() | ![]() | ![]() |
Testing & Inspection | Internal inspection | External visual inspection only | Internal inspection |
Cost Efficiency | “Applicable to public procurement unit price” | Quality and site management methods vary by company | Varies by site conditions |
Category | PP Roll Sheet | FRP LINING | POLY UREA |
Fire Safety | 1. No use of flammable materials in confined spaces 2. Pipe welding possible 3. No quality issues due to seasonal changes (PCPL method) | 1. Uses flammable materials in confined spaces 2.Fire hazard during pipe welding 3.Quality issues occur due to seasonal changes | No use of flammable materials in confined spaces |
![]() | ![]() | ![]() | |
Fire Cases | None | 1. Multiple fire cases 2. Fire incident at SK site during FRP repair (2020.07.23) | ![]() |
Debris | 1. Reduced use of temporary scaffolding 2. Clear visibility enables easy quality control and supervision 3. Improved work ability | 1. Must remove existing debris completely 2. Difficult to work in narrow spaces / underground tanks 3. Generates debris and extra disposal costs | |
Photo | ![]() | ![]() | ![]() |
Water Purification Plants, Reservoirs, Water Tanks, Chemical Tanks – Construction Records
Year Applied | Client | Application Target | Main Chemical Contents | Notes | Photo |
2011~ | Korea Water Resources Corporation – Suncheon Daeryong Reservoir | Internal tank lining | PAC(POLY ALUMINUM CHLORIDE), NaOH | Applied PP Sheet after removing existing FRP | ![]() |
2012~ | LG Siltron, Gumi | Internal lining of water tank | HF | Repaired water tank after removing existing FRP | ![]() |
2013~ | Korea Water Resources Corporation – Ilsan, Cheongju Reservoirs | Internal tank lining | PAC(POLY ALUMINUM CHLORIDE), NaOH | Applied PP Sheet after removing existing FRP | ![]() |
2015~ | Yangju Okjeong Wastewater Treatment Plant / Samsung ENG | Internal lining of wastewater tank | Domestic wastewater | New chemical tank | ![]() |
2016~ | Korea Water Resources Corporation – Suji, Seongnam Reservoirs | Internal tank lining | PAC(POLY ALUMINUM CHLORIDE), NaOH | Applied PP Sheet after removing existing FRP | ![]() |
2017~ | Korea Water Resources Corporation – Onsan, Gwangyang, and multiple other reservoirs | Internal tank lining | PAC(POLY ALUMINUM CHLORIDE), NaOH | New tank | ![]() |
년도 | 공사명 | 발주처 |
2008 | 한국표준과학연구원 중앙동 물탱크 보수공사 | 한국표준과학연구원(대전) |
2009 | 양주소도관리단 광백정수장 착수정 보수공사 | 한국수자원공사 |
2010 | 빙그레 논산공장 담수시설 보수공사 | (주)빙그레 |
전남 무안군 삼향농공단지 배수지 | 무안상수도사업소 | |
2011 | 용인시 고기동 배수지 신축공사 | 용인상수도사업소 |
한국표준과학연구원 신소재동 보수공사 | 한국표준과학연구원(대전) | |
경남 거창군 소야마을상수도 물탱크 보수공사 | 거창군청 | |
경남 남해군 풍산마을 아파트 옥상저수조 보수공사 | 남해군청 | |
전남 순천시 대룡정수장 알루미나황산탱크 보수공사 | 순천상수도사업소 | |
예산 광시면 마을상수도 물탱크 보수공사 | 예산군청 | |
경북 구미시 LG실트론 불산폐수탱크 보수공사 | LG실트론 | |
2012 | 한국표준과학연구원 물탱크 보수공사 | 한국표준과학연구원(대전) |
전남 광양 마동정수장 신축공사(흡수정) | 광양시 상수도사업소 | |
전남 여수 경도배수지 보수공사 | 여수시 상하수도 사업소 | |
평택발전본부 활성탄 슬러지(황산)탱크 보수공사 | 한국서부발전(주) | |
인제군 배수지 보수공사 | 인제군청 | |
해남 화산면 배수지 보수공사 | 해남군청 | |
고흥군 동강면 배수지 보수공사 | 고흥군청 | |
구레군 마산배수지 보수공사 | 구례군청 | |
2013 | 전남 광양 마동정수장 보수/신축공사 | 광양시 상수도사업소 |
구례군 화엄사배수지 보수공사 | 구례군청 | |
전남 무안군 청계배수지 보수공사 | 무안군청 | |
의정부시 가능정수장 침전지 보수공사 | 의정부시 맑은물환경사업소 | |
안성정수장 응집지 보수공사 | 안성시 상수도사업소 | |
남해군 율도배수지 신축공사 | 남해군청 | |
일산정수장 약품탱크 보수공사 | 한국수자원공사 | |
강북아리수센터 유입수로 신축이음부 보수공사 | 서울특별시 강북아리수센터 | |
2014 | 김포 군부대 유류탱크 라이닝공사 | 해병대 시설과 |
가성소다 확산 방류벽 및 바닥 방수공사 | 울산회야정수사업소 | |
기흥 SR-PJT UT1동 신축공사(옥상, 지하수조) | 삼성물산 | |
옥정하수처리장 방수공사 | 삼성엔지니어링 | |
화성16라인 폐수재이용시설 방수공사 | 삼성엔지니어링 | |
청주 정수장 약품탱크 보수공사 | 한국수자원공사 | |
2015 | 화성17라인 UT동 PH2 신축공사(지하수조) | 삼성엔지니어링 |
수지정수장 약품탱크 보수공사 | 한국수자원공사 | |
청주정수장 약품탱크 FRP 철거 보수공사 | 한국수자원공사 | |
2016 | 청주정수장 약품탱크 보수공사 | 한국수자원공사 |
성남정수장 약품탱크 보수공사 | 한국수자원공사 | |
창원시 하수관리사업소 방수공사 | 창원시하수관리사업소 | |
2017 | 강북아리수정수센터 | 상수도사업소 |
행당동 한신 아파트 지하저수조 | 한국수자원공사 | |
이니시스방재 약품탱크 보수공사 | 이니스방재 | |
경주실내체육관 방수공사 | 경주시청 | |
대신환경 플렌트 FRP보수공사 | 신원건설 | |
오션빌딩 방수공사 | 오션빌딩 | |
정토건설 방수공사 | 정토건설 | |
SK하이닉스 M15 지하저수조 방수공사 | SK건설 | |
2018 | (수출)베트남 Ace Antenna WWT 방수공사 | TEKS |
대전표준과학연구원 유량 수조 방수공사 | 표준과학연구원 | |
순천대룡정수장 취수장 통합 신축공사 | 순청상수도사업소 | |
용인 정수장 신기술 실증화 사업 | 경기도물산업지원센터 | |
SK하이닉스 M15원자재 창고 지하저수조 방수공사 | SK건설 | |
2019 | SK하이닉스 M16초순수 CUB동 방수공사 | SK건설 |
부안 수자원공사 약품탱크 “FRP”철거보수공사 | 수자원공사 | |
삼성전자 기흥 정수장 “약품탱크”보수공사 | 삼성전자 | |
2020 | 청주정수장 약품탱크 | 한국수자원공사 청주 |
동해시 쇄운정수장 정수지 방수 | 강원도 동해시 상하수도사업소 | |
동해시 쇄운정수장 첨전지 트러프 방수 | 강원도 동해시 상하수도사업소 | |
온산정수장 약품탱크 | 한국수자원공사 울산 | |
철원군 동송정수장 침전지 방수 | 강원도 철원군 상하수도사업소 | |
냉천배수지 시설물 개량 내부라이닝 방수시트 조달 | 대구광역시 상수도사업본부 | |
삼성전자 기흥3기 정수장 “약품탱크 보수공사 #9 | 삼성전자 | |
2021 | 용인배수지 방수,방식공사 | 경기도 용인시 상수도사업소 |
금산정수장 운영효율화사업 관급자재 구매 | 한국수자원공사 금산권지사 | |
삼성전자 평택 고덕 P3 복합 수조동 PP방수시트 | 삼성물산 건설부문 | |
2022 | 삼성 기흥화성 정수장 보수공사 | 주식회사 신우리움 |
SK하이닉스 청주 M15 Ph-2 Project | SK에코플랜트 | |
SK하이닉스 청주 M15 Ph-2 WWT Project | SK에코플랜트 | |
은하배수지 보수공사 | 홍성군 수도사업소 | |
남면공공하수처리시설 보수공사 | 전라남도 화순군 | |
연곡배수지(A) 방수시트 구입 | 강릉시 상하수도사업소 |
